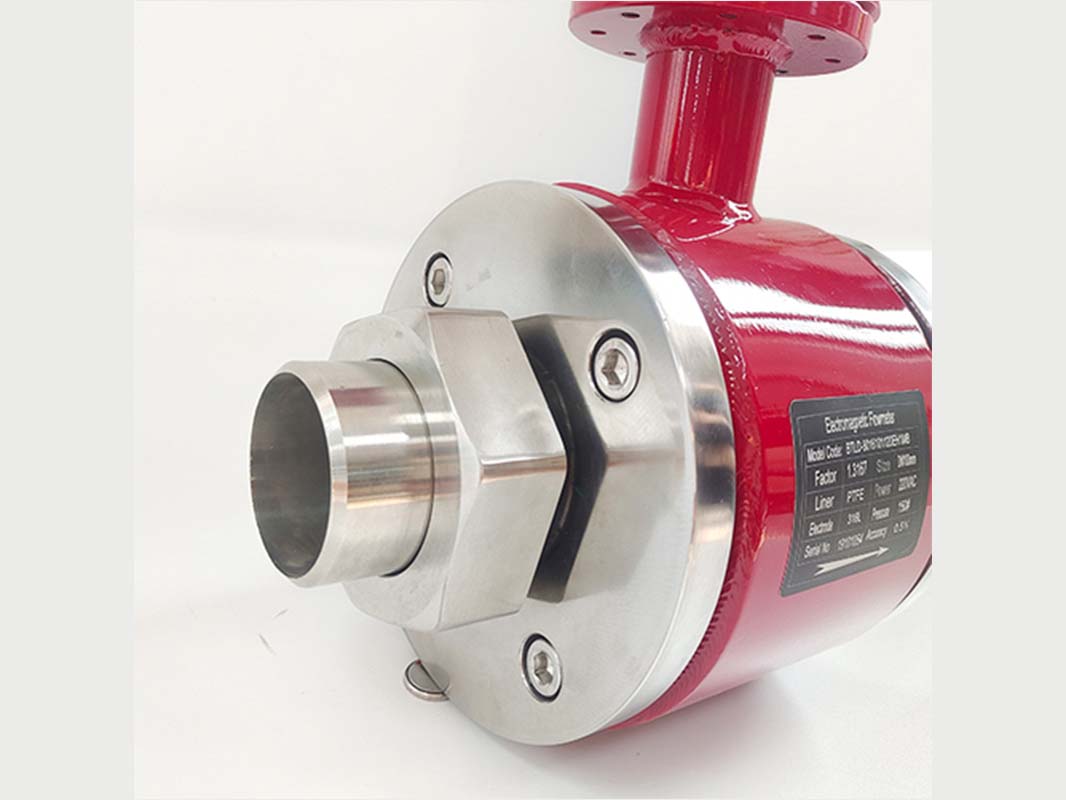

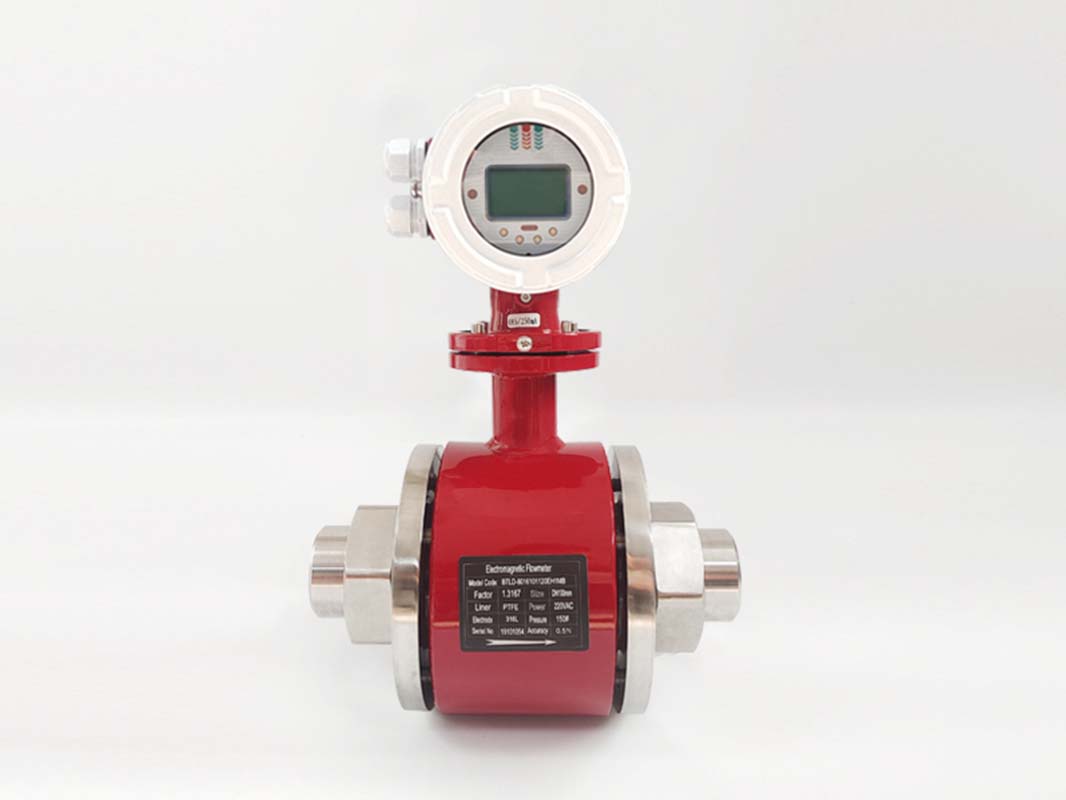

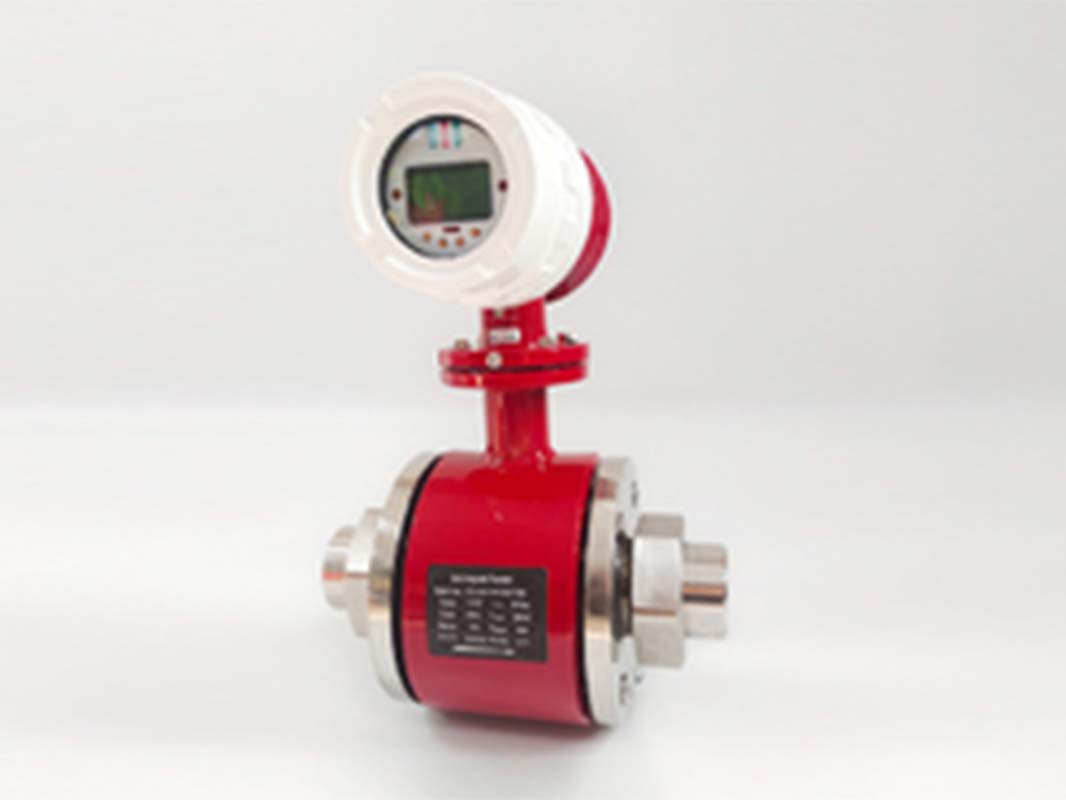

Threaded connection electromagnetic flowmeter

产品描述：Electromagnetic flowmeter is adopting international advanced technology research and development of a kind of high intelligence, high reliability flowmeter tear open outfit is convenient, not only can be used in the process of general detection, also suitable for pulp, pulp and paste liquid measurement, widely used in petroleum, chemical, steel, food, electric power, papermaking, water conservancy, water supply and drainage, take water and other industries....

联系电话：15093635624

立即咨询联系我们

详细介绍

Threaded liquid flowmeter design is explosion-proof, can display the total flow, instantaneous flow and full flow percentage. The battery adopts long-acting lithium battery, the service life of single function integral meter battery can reach more than 5 years, and the service life of multi-function display meter battery can also reach more than 12 months. Can display many flow units, cubic meters, plus warehouse, liter, standard cubic meters, standard liter, etc., can set fixed pressure, temperature parameters for gas compensation, on the occasion of pressure and temperature parameters change little, can use the meter for fixed compensation calculation.

Product features

■ high accuracy, generally up to 1%R, soil 0.5%R, high precision soil 0.2%R

■ good repeatability, short-term repeatability can reach 0.05%~0.2%, it is because of good repeatability, such as frequent calibration or online calibration can get very high accuracy, is the preferred flowmeter in trade settlement

■ output pulse frequency signal, suitable for total measurement and computer connection, no zero drift, strong anti-interference ability can obtain a high frequency signal (3-4khz), signal resolution strong range wide, large diameter up to 1:20, small diameter 1:10 compact and lightweight, easy installation and maintenance, circulation capacity

■ suitable for high pressure measurement, meter body need not open holes, easy to make high pressure meter

■ special sensor types, can be designed according to the special needs of users for all kinds of special sensors, such as low temperature, two-way, underground type, sand mixing special type

■ can be made into insert type, suitable for large diameter measurement, small pressure loss, low price, can not cut out the flow, easy installation and maintenance

Product parameters

Instrument caliber and connection

4, 6, 10, 15, 20, 25, 32, 40 screw connection

(15, 20, 25, 32, 40) 50, 65,80, 100, 125, 150, 200 flange connection

Accuracy grade

soil 1%R, soil 0.5%R

Range ratio

1:10; 1:15. 1:

Instrument material

304 stainless steel, 316 (L) stainless steel, etc

Temperature of the measured medium (C)

-20~+120℃

Temperature of measured medium

polytetrapatite lining :-30~+120℃

Ambient temperature

-10~+55℃, relative humidity 5%~90%, atmospheric pressure 86~106Kpa output signal pulse frequency signal, low level < 0.8V high level & GT; 8V

Power supply

+12VDC, +24VDC (optional)

Signal transmission line

STVPV3X0.3 (three-wire system)

Transmission distance

< 1000m

Signal line interface

Hausmann connector

Explosion-proof grade

non-explosion-proof products

Protection level

IP65

Product application

Widely used in petroleum, chemical, metallurgy, scientific research and other fields of measurement and control system. Threaded liquid turbine flow meter sensors with sanitary connections can be used in the pharmaceutical industry.
