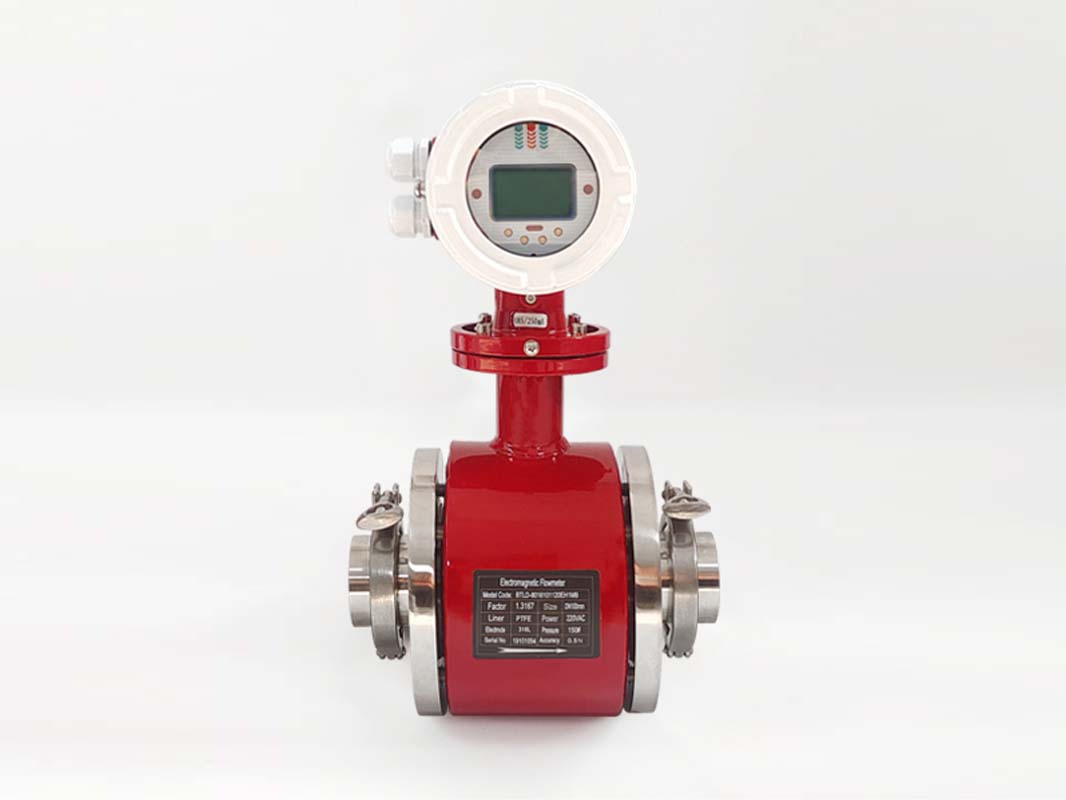

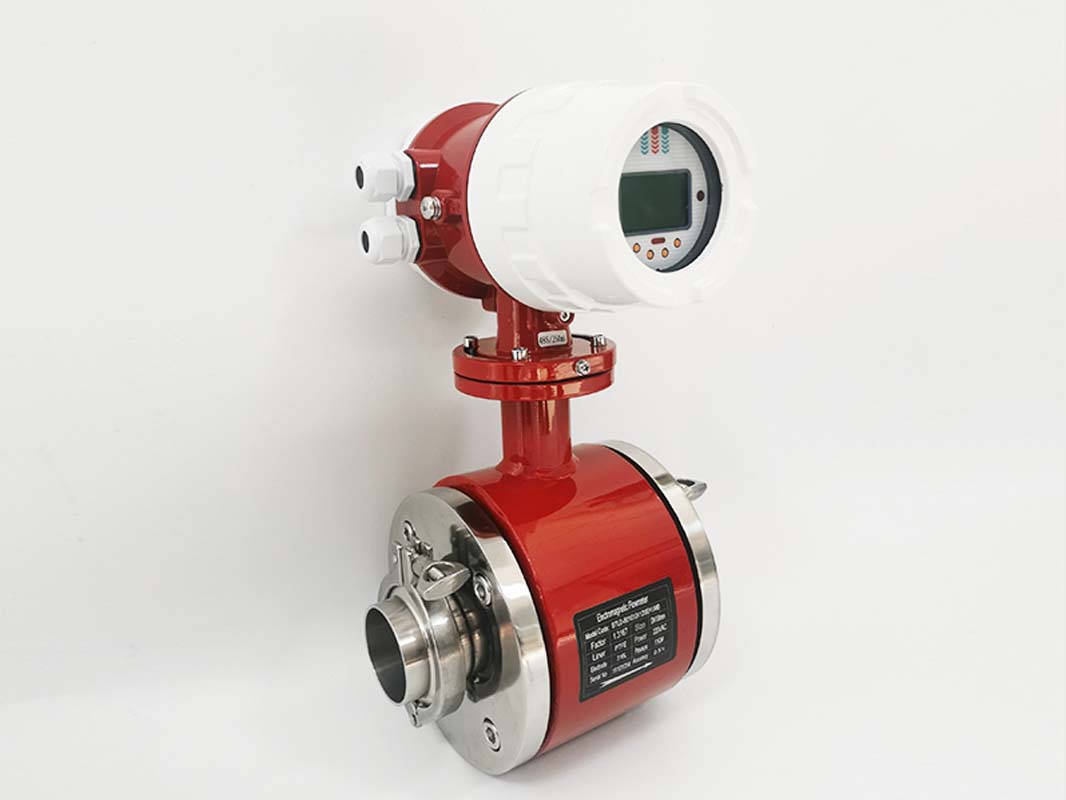

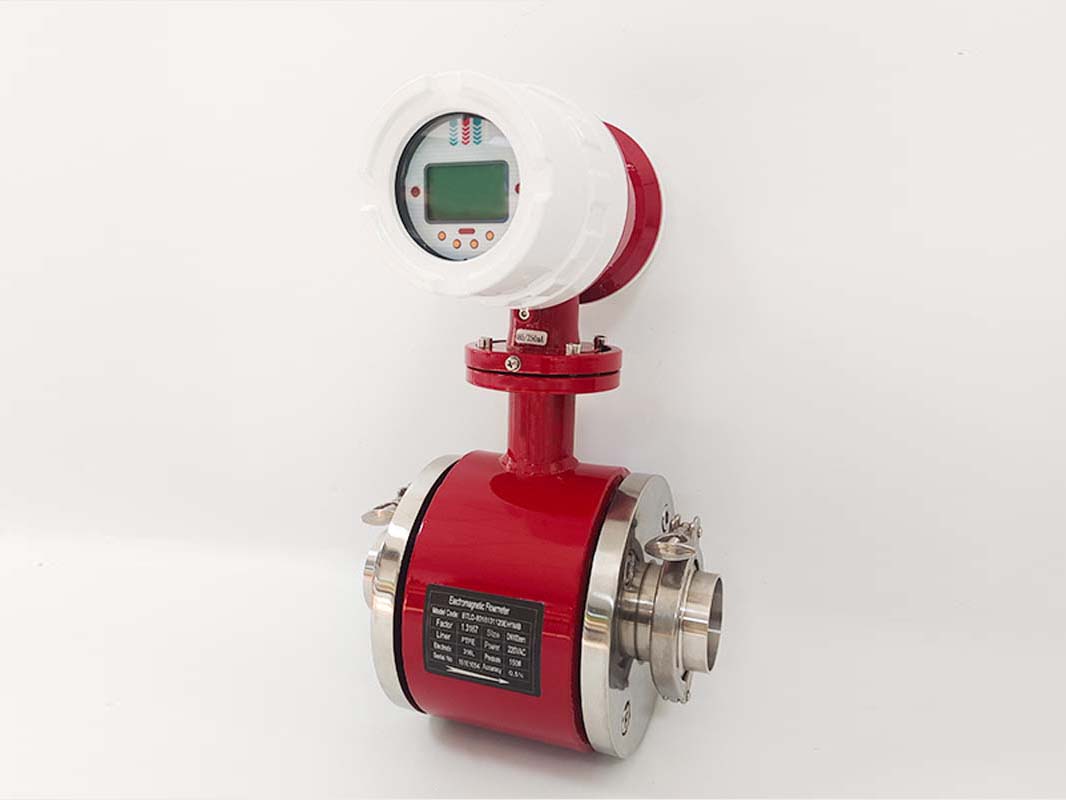

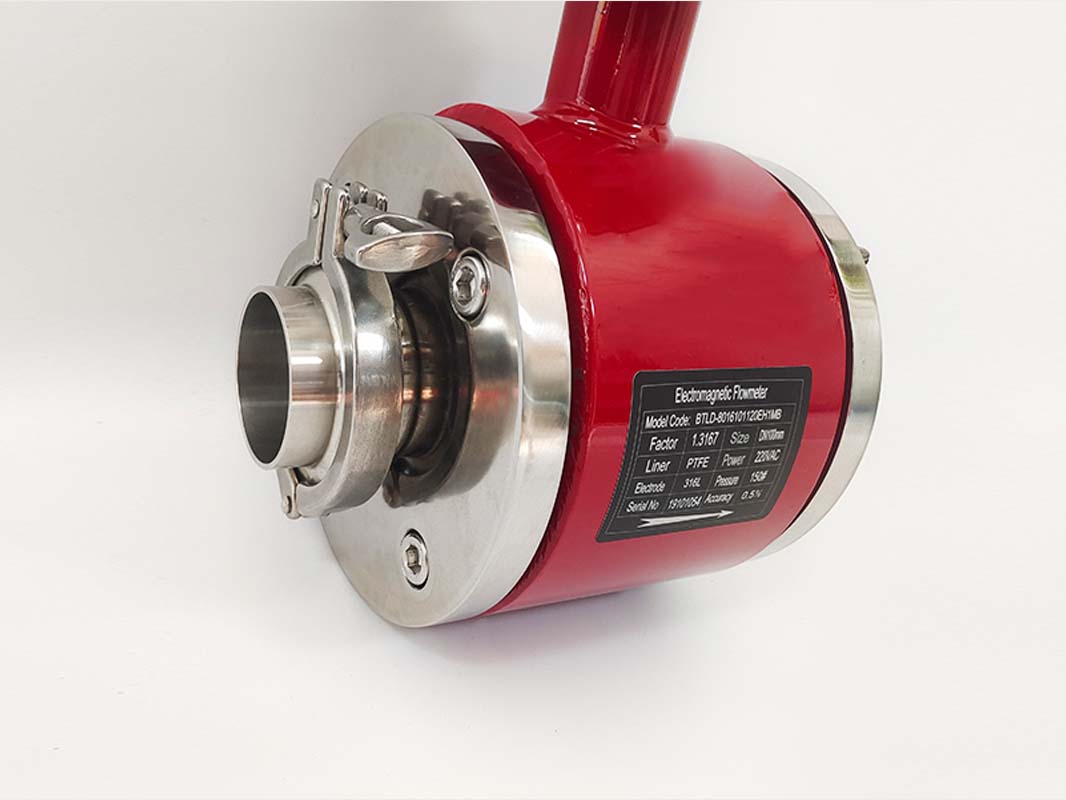

Sanitary clamp electromagnetic current recalimeter

产品描述：Adopted a new type health lining material and lining process, in line with the hygiene requirements of food industry, at the same time, adopt the stainless steel shell and stainless steel clamp connection, convenient rapid disassembly, cleaning of electromagnetic flowmeter, electromagnetic flowmeter in use is not easy to be polluted in the process, and can effectively prevent measure fluid residue in the measuring tube pile up....

联系电话：15093635624

立即咨询联系我们

详细介绍

The electromagnetic flowmeter consists of a sensor and a converter. It is based on Faraday's law of electromagnetic induction, used to measure the volume flow of conductive liquid with conductivity greater than 5uS/cm, is a kind of inductive meter to measure the volume flow of conductive media.In addition to measuring the volume flow of general conductive liquid, it can also be used to measure the volume flow of strong corrosive liquid such as strong acid and strong alkali and uniform liquid solid two-phase suspension liquid such as mud, pulp and paper pulp.

Product features

■ the use of new sanitary lining material, to prevent the accumulation of measuring medium residues in the measuring tube.

■ the use of fast connection scheme, electromagnetic flowmeter easy to disassemble, maintenance and cleaning.

■ the use of 16-bit carbon microprocessor signal processing, with high integration, fast operation speed, high calculation accuracy, full digital signal processing, strong anti-interference ability, reliable measurement and other characteristics.

Product parameters

Nominal diameter (mm)(special specifications can be customized) pipe type four gas lining

DN10~DN200

Flow direction

positive, negative, net flow

Mileage ratio

150: 1

Repeatability error

+0.1% of the measured value

Accuracy grade

Pipe type: grade 0.5, grade 1.0

Temperature of measured medium

polytetrapatite lining :-30~+120℃

Rated operation

DN10- DN200

Flow rate range

0.1-15m/s

Conductivity range

conductivity of the flow body to be measured 25us/cm

Digital frequency output

frequency upper limit can be set in 1~5000HZ with photoelectric isolation transistor collector open two-way output. External power supply < Maximum collector current is 250mA at 35V conduction

Power supply

AC220V, DC24V or 3.6V battery

Connection mode

Card connection is used between flowmeter and piping

Explosion-proof grade

EXdIIBT4 grade

Protection grade

IP65, up to IP68 specially made

Product application

Can be widely used in mineral water, soy sauce, jam, beer, fruit juice, rice wine, milk and other food production process and health, chemical and other fields.
