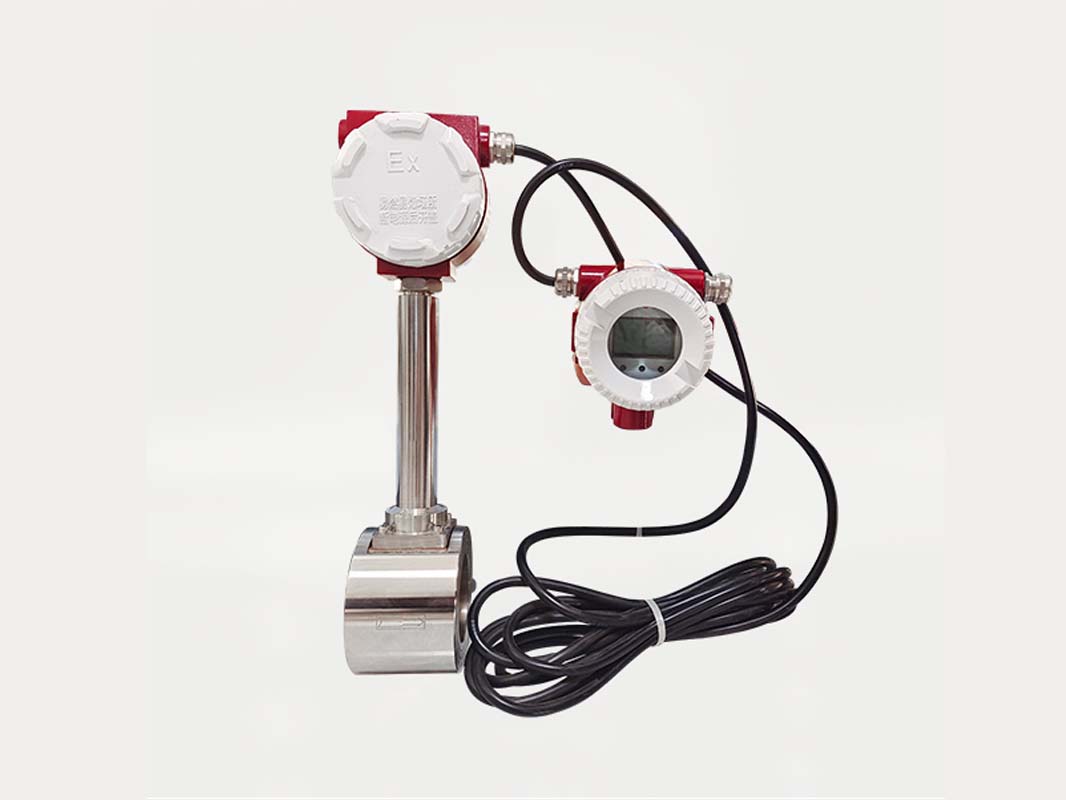

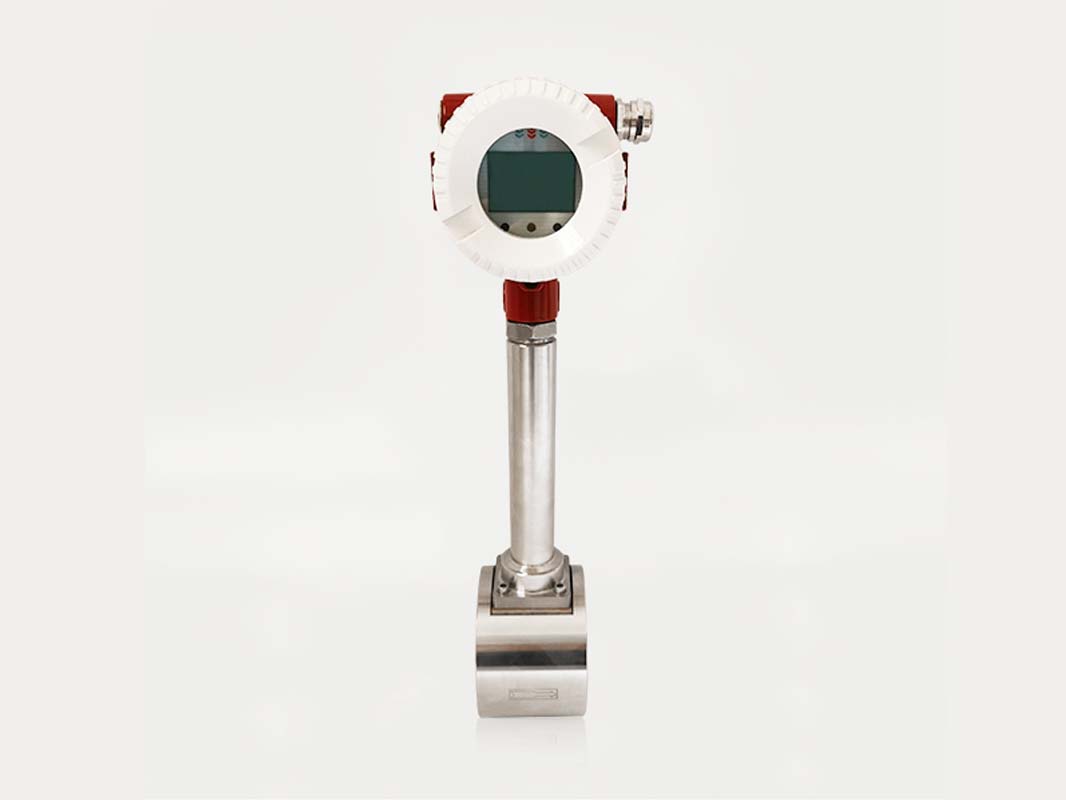

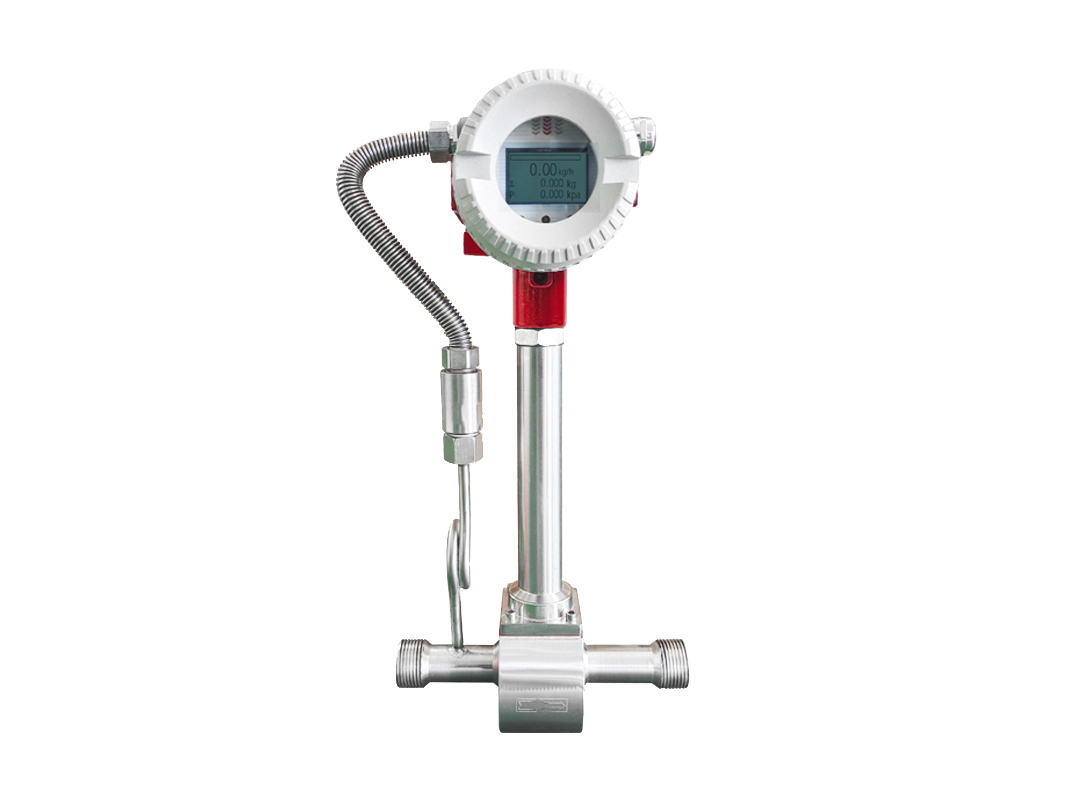

BTLUGB vortex flowmeter

describe：Widely used in petroleum, chemical, electric power, light industry, power heating and other industries
Port measurement medium: liquid, gas or steam
Measuring range: liquid measuring range: 1.2-2000m3/h Gas measuring range: 5-11000m3/h
Output signal: pulse signal, 4~ 20mA
Communication mode: RS485, HART
Liquid :+1.5%,+1% gas or steam :+1.5%,+1%
Medium temperature: -40℃~+250 ℃, -40℃~+320℃
Port explosion-proof grade: ExdlICT60 Protection grade: IP65.....

phone：15093635624

Consult contact us

introduce

Vortex flowmeter is a kind of velocity flowmeter, widely used in petroleum, chemical, electric power, light industry, power heating and other industries.

product features

■ Immovable parts, long-term stability, simple structure and easy to install and maintain;

■ Sensor output pulse frequency, the frequency and the actual flow of the flow measured body is linear, zero drift, performance is very stable, the structure of a variety of forms, pipe type, plug type flow sensor form;

■ High accuracy, usually liquid measurement accuracy is +1.0%; Gas measurement accuracy is +1.5%;

■ The measurement range is wide, up to 1:20 in the range of Reynolds number 2x104 ~7x106.

■ Small pressure loss (about 1/4~1/2 of orifice flowmeter), belongs to energy-saving flow meter;

■ Flexible installation mode, horizontal, vertical and different angles can be installed according to the site process of pipeline blockage;

■ Adopting disturbance elimination circuit and anti-vibration sensing head, it has certain anti-environmental vibration performance.

■ Using ultra-low power single-chip microcomputer technology, a 3V10AH lithium battery can last for more than 5 years;

■ The nonlinearity of instrument coefficient is corrected by software to improve measurement accuracy.

■ EPROM is used to protect cumulative flow from power failure, and the protection time is more than 10 years.

Product parameters

Gauge diameter (mm)

DN25-DN300

Connection type

clamping type, flange type, thread type, clamp type, insert type

Nominal pressure (Mpa)

1.6mpa, 2.5mpa, 4.0mpa (other customized)

Precision grade

liquid :+1.5%, +1%

Gas or steam :+1.5%, +1%

Range than

1:10；1:15；

Sensor material

AC110 - 220V or DC24V

The conditions of use

Medium temperature: -40° C ~+250° C, -40° C ~+320 ° C

Ambient temperature :-20° C to +60° C

Relative humidity :5%~90%

Atmospheric pressure: 86Kpa ~ 106 Kpa

Signal output function

pulse signal、 4~20mA signal

Communication output function

RS485、HART

working power supply

External power supply: 24VDC, suitable for 4~20mA output, pulse output, RS485 communication, etc

Internal power supply :3.6V 10AH lithium battery, the battery voltage in 2.0V~ 3.0V can work normally

Signal line interface

M20*1.5 internal thread (NPT thread needs to be customized)

Explosion-proof grade

ExdIICT6

Protection class

IP65

Product application

The product has simple structure, no moving parts, low running cost and more energy saving significance. Mainly used for flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and other media.
