Nozzle flowmeter

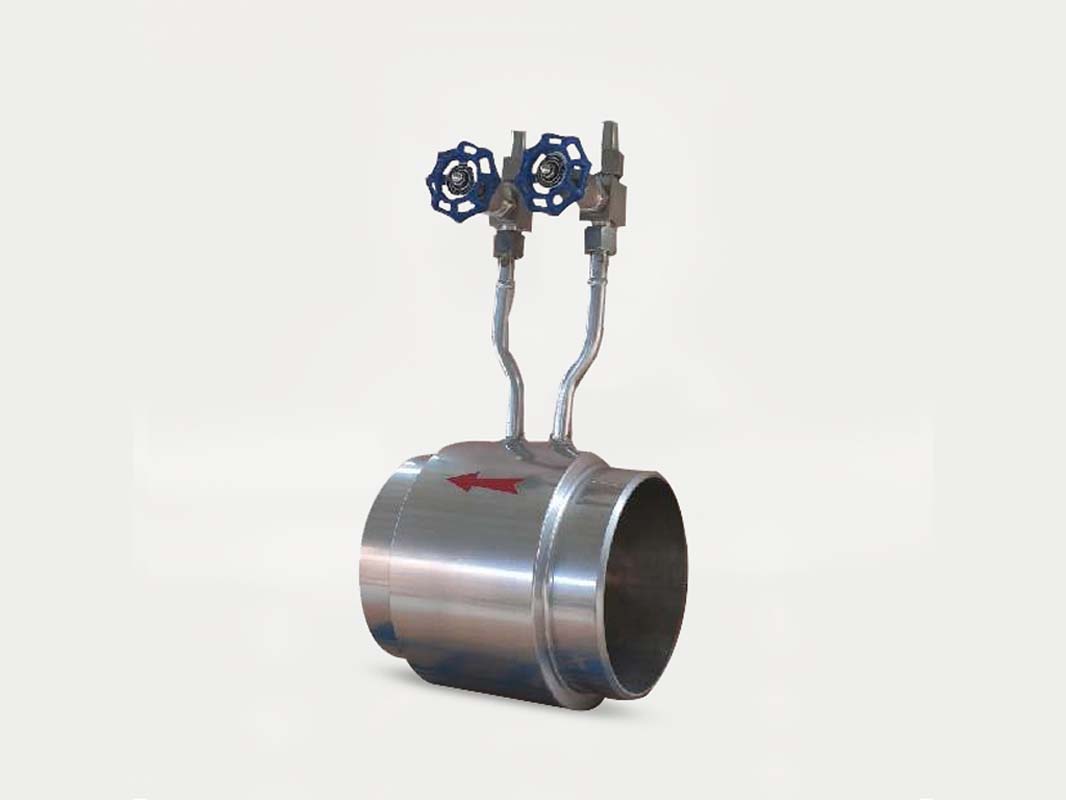

产品描述：Nozzle flowmeter has a long history and various test data are complete. Simple structure, no moving parts, long-term use of stable and reliable, rich design and manufacturing and application experience. High degree of standardization, can not carry out real flow calibration....

联系电话：15093635624

立即咨询联系我们

详细介绍

Nozzle flow transmitter is composed of nozzle flow sensor and differential pressure transmitter, output 4-20mA electrical signal representing the size of differential pressure signal, flow calculation and temperature, pressure compensation by the user's additional configuration. There are two kinds of structures: split installation and integrated installation. Integrated installation is the product factory has differential pressure transmitter and nozzle connected into one, users buy integrated nozzle, use without connecting the pressure tube. But must be equipped with the corresponding flow calculator, pressure transmitter and temperature transmitter. The split nozzle flow transmitter consists of an independent nozzle flow sensor and a differential pressure transmitter. The connection between nozzle flow sensor and differential pressure transmitter is completed by the user.

Product features

■ Compared with orifice flowmeter, nozzle flowmeter has smaller pressure loss, thus saving energy. It is more durable and suitable for high temperature and high pressure fluids. It is widely used in steam flow measurement in electric power, chemical industry and other industries. Nozzle flow meter includes standard nozzle (ISA1932 nozzle), long neck nozzle two kinds. Its design and manufacture are in line with the international standard ISO5167 or national standard GB/T2624 provisions.

Product parameters

Applicable medium

Especially suitable for high temperature and high pressure steam and water, also can be used for all kinds of gas, liquid

Nominal diameter

DN50 -- 500mm (DN>500 can also be designed and produced)

Working pressure

≦42MPa

Operating temperature

-50℃ -- 650℃

Pressure taking method

Angle connection (single ring chamber, flange ring chamber or direct drilling) pressure taking

Nozzle installation method

flange (directly drilling and taking pressure parts), fastener clamping type

Flange, ring chamber, fastener clamping type

Clamping parts (also pressure parts) welding type

Executive standard

IS05167; GB/T2624

Accuracy

Meet the standard: ± 1.0%

Material

flange or clamping part: carbon steel or alloy steel according to the medium temperature; Stainless steel etc.

Nozzle

304 stainless steel; 316 etc.

Applicable medium

Especially suitable for high temperature and high pressure steam and water, also can be used for all kinds of gas, liquid

Nominal caliber

DN50 -- 630mm

Working pressure

≦42MPa

Operating temperature

-50℃ -650 ℃

Pressure taking method

diameter distance (D-D/2) pressure taking

Installation method of nozzle parts

attach and weld upper and lower pipe sections, and then set pressure holes according to diameter distance (D-D/2)

Executive standard: IS05167

GB/T2624

Accuracy

meet the standard: ±2.0 %

Material

carbon steel and alloy steel are available for upper and lower pipe sections according to medium temperature; Stainless steel etc.

Spray nozzle

Stainless steel 304. 316 etc.

Product application

It is widely used in petroleum, chemical industry, mining and metallurgy, iron and steel, electric power, water conservancy, paper making, pharmaceutical, food and chemical fiber and many other industries.
