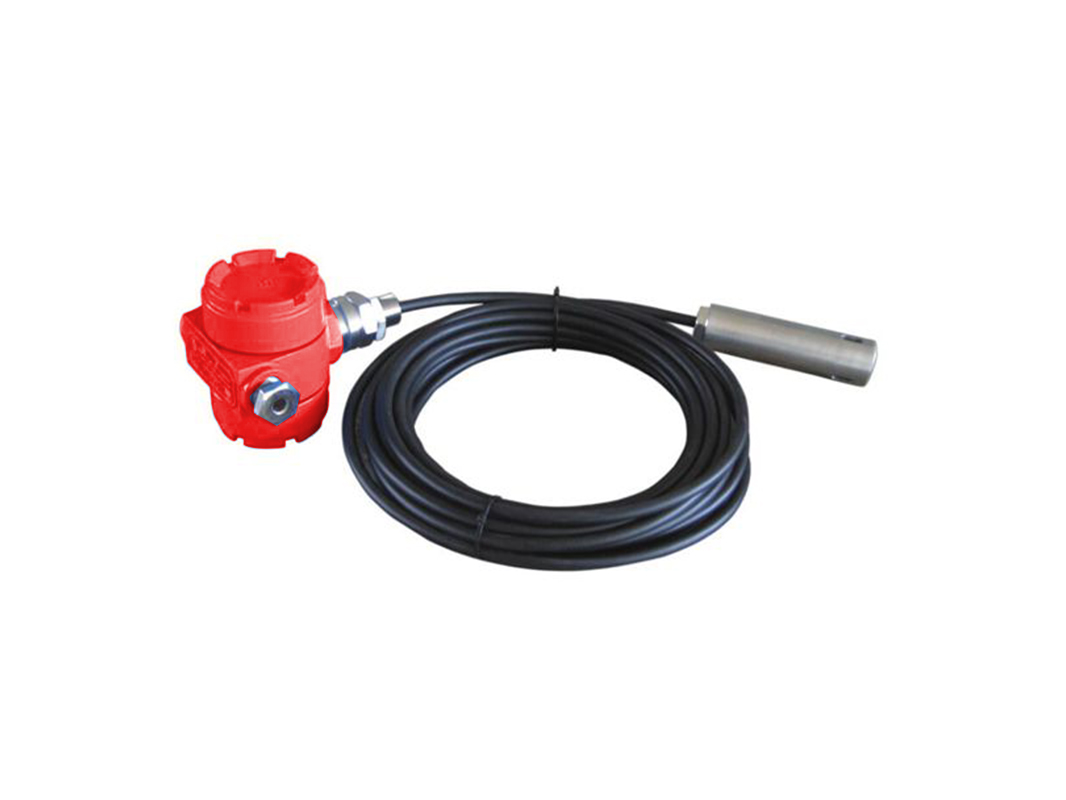

Input level gauge

产品描述：Input level meter is based on the principle that the hydrostatic pressure measured is proportional to the height of the liquid, and uses the piezoresistive effect of diffusing silicon or ceramic sensitive elements to convert the hydrostatic pressure into electrical signals. After temperature compensation and linear correction, converted into 4-20madC standard current signal output. The sensor part of the static pressure liquid level transmitter can be directly put into the liquid, the transmitter part can be fixed with flange or bracket, installation and use is very convenient. The input level meter is made of advanced isolated diffused silicon sensitive elements. It can be directly put into the container or water body to accurately measure the height from the end of the water level meter to the water surface, and output the water level value through 4-20mA current or RS485 signal ...

联系电话：15093635624

立即咨询联系我们

详细介绍

Input level meter is based on the principle that the hydrostatic pressure measured is proportional to the height of the liquid, using the piezoresistive effect of diffusion silicon or ceramic sensitive elements, the hydrostatic pressure into electrical signals. After temperature compensation and linear correction, converted into 4-20madC standard current signal output. The sensor part of the static pressure liquid level transmitter can be directly put into the liquid, the transmitter part can be fixed with flange or bracket, installation and use is very convenient.

The input level meter is made of advanced isolated diffused silicon sensitive elements. It can be directly put into the container or water body to accurately measure the height from the end of the water level meter to the water surface, and output the water level value through 4-20mA current or RS485 signal.

Product features

■ Good stability, high precision directly into the measured medium, installation and use is quite convenient. Solid state structure, no moving parts, high reliability, long service life from water, oil to the viscosity of the larger slurry can be measured with high precision, not affected by the bubbling, deposition, electrical characteristics of the tested medium wide range of temperature compensation. With power reverse polarity protection and overload current limiting protection.

Product parameters

Measuring range

0.3 ~ 100M (by user choice)

Precision

0.2, 0.5, 1.0

Operating temperature

-20 ~ 80℃

Output signal

two line system 4 ~ 20mADC

Power supply voltage

standard 24VDC (12 ~ 36VDC)

nsensitive area

4~20mA,4~20mA superimposed HART communication, 485 communication, etc

Power supply voltage

≤±1.0%FS Load capacity: 0-600 ω

Relative temperature

≤85%

Protection grade

IP68

Explosion-proof mark

Exia ⅱ CT4-6

Product application

Input level meter is widely used in urban water supply and drainage, sewage treatment, groundwater, reservoirs, rivers, oceans and other water level monitoring fields.
