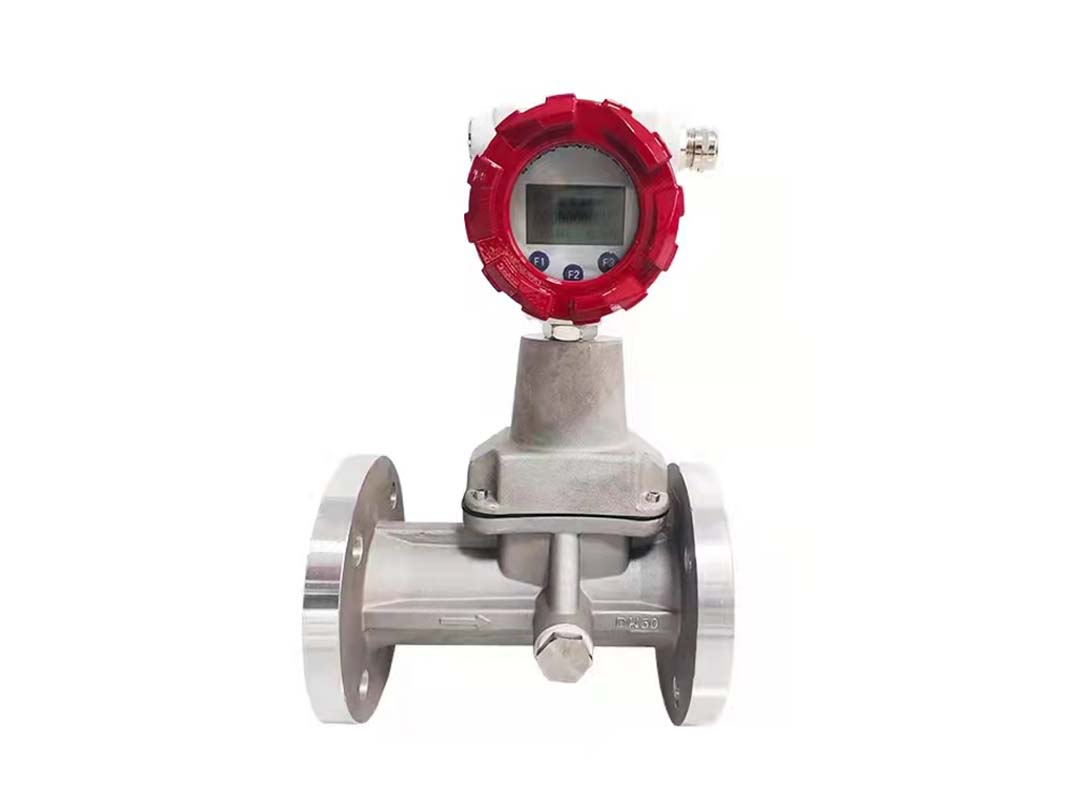

Intelligent precession vortex flowmeter is a new type of gas flow meter developed by our company with domestic leading level. The flowmeter integrates flow, temperature and pressure detection functions, and can automatically compensate temperature, pressure and compression factors. It is an ideal instrument for gas measurement in petroleum, chemical, electric power, metallurgy and other industries.
◆ No mechanical moving parts, not easy to corrosion, stable and reliable, long life, long-term operation without special maintenance;
◆ Using 16-bit computer chip, high integration, small size, good performance, the whole machine has strong function;
Intelligent flowmeter set flow probe, microprocessor, pressure, temperature sensor in one, adopt built-in combination, make the structure more compact, can directly measure fluid flow, pressure and temperature, and automatic real-time tracking compensation and compression factor correction;
Double detection technology can effectively improve the detection signal intensity, and inhibit the interference caused by pipeline vibration;
◆ Adopt domestic leading intelligent anti-seismic technology, effectively suppress the interference signal caused by vibration and pressure fluctuation;
◆ Low power consumption, internal battery power supply, also can be connected to external power supply.
Connection mode: clamping | clampingtype, flange type, thread type, clamp type, insert type |
Nominal pressure (Mpa) | 1.6mpa, 2.5mpa, 4.0mpa (other customized) |
Nominal pressure (Mpa) | liquid :+1.5%, +1% Gas or steam :+1.5%, +1% |
Range ratio | 1:10；1:15； |
Sensor material | AC110-220V or DC24V |
Conditions of use | medium temperature :-40° C ~+250° C, -40° C ~+320 ° C Ambient temperature :-20° C to +60 ° C Relative humidity: 5%~90% Atmospheric pressure: 86Kpa ~ 106 Kpa |
Signal output function | pulse signal, 4~20mA signal |
Communication output function | RS485、HART |
Working power supply | external power supply: 24VDC, suitable for 4~20mA output, pulse output, RS485 communication, etc Internal power supply :3.6V 10AH lithium battery, the battery voltage in 2.0V~3.0V can work normally |
Open optimization | M20*1.5 internal thread(NPT thread needs to be customized) |
Explosion-proof grade | ExdIICT6 |
Protection level | IP65 |
Precessing vortex is widely used in heating equipment, petroleum industry, metallurgy industry, sewage treatment, chemical industry and so on.
