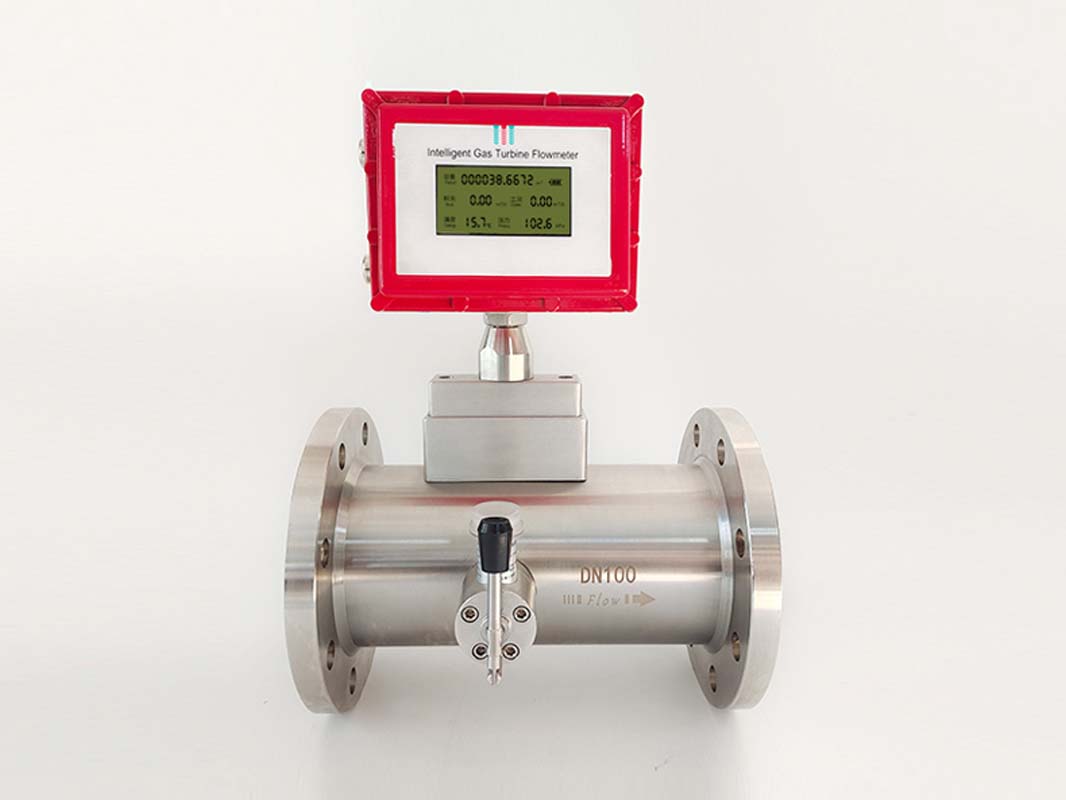

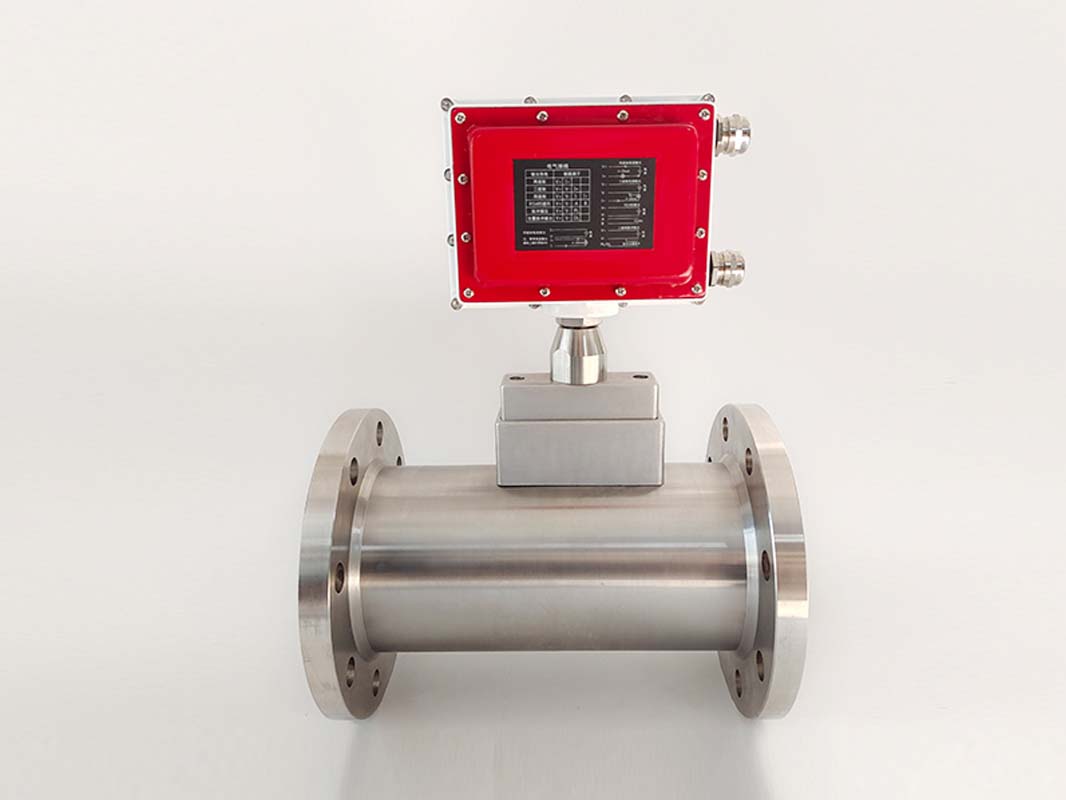

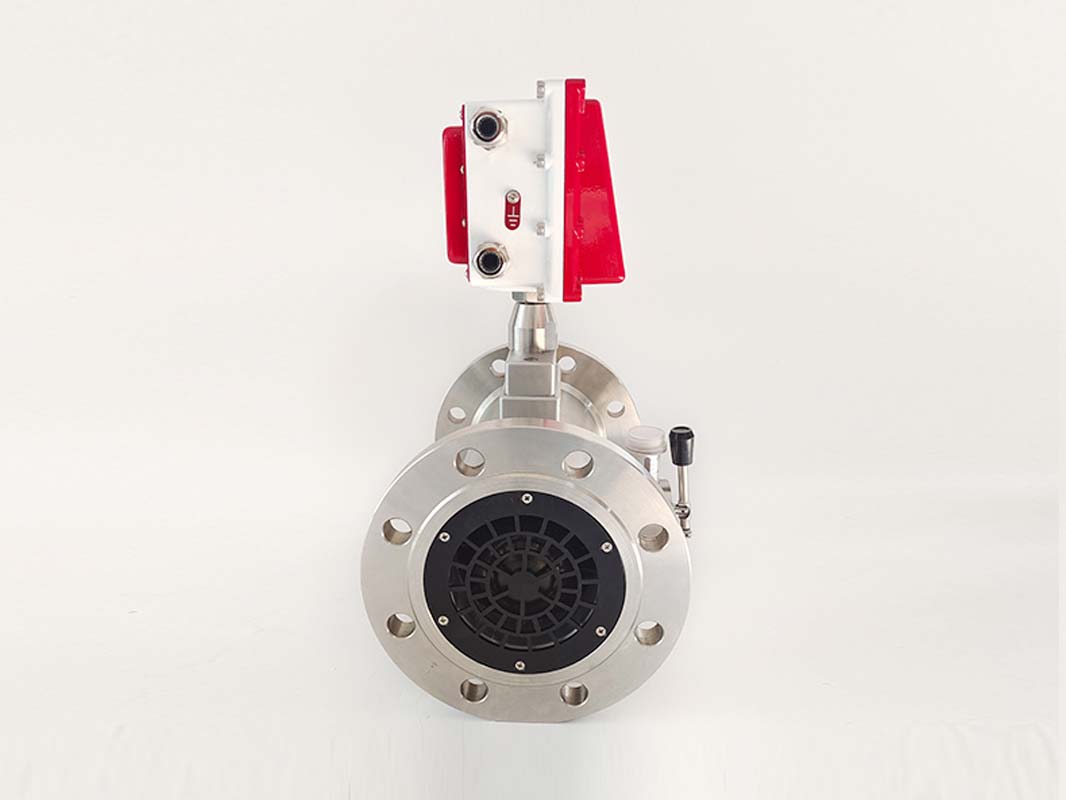

BTLWGQ Gas turbine flow

产品描述：Meter product description: city natural gas meter, industrial gas meter
Measurement medium: gas
Range: Standard range :2.5-4000m3/h Extended range: 4-6500m3/h
Output signal: pulse signal, 4-20mA current signal, control signal
Accuracy grade :+1.5%R(soil 1%R needs special)
Medium temperature: -20° C ~+80° C
Explosion-proof grade: ExdlICT6Gb; ExdlIBT6Gb; ExialICT4Ga
Protection grade: IP65......

联系电话：15093635624

立即咨询联系我们

详细介绍

BTLWGQ series gas turbine flowmeter is my company to sum up the experiences of many years of development, and USES a number of innovative technologies and successful development of a new generation of products, product directly measuring the working condition of the gas flow rate and total volume, can be configured volume correction instrument, measuring the temperature, pressure, the conditions of the gas volume flow rate and total amount, is the city gas trade measurement and gas metering and testing High performance meter.

product features

Integrated with microprocessor, temperature sensor and pressure sensor, it directly measures the flow rate, temperature and pressure of the measured medium, and automatically compensates the temperature and pressure of the flow and corrects the compression factor.

Low power consumption design, can be powered by lithium battery, the battery can be used for more than 2 years; It can also be connected to external power supply.

The instrument has pulse signal output, 4-20mA analog signal output, RS485(Modbus-RTU protocol) communication output; At the same time there is IC card signal output, can be used with IC card prepaid system, easy to trade settlement.

Special LCD screen (with backlight), intuitive and convenient reading, can simultaneously display the instantaneous flow of standard condition, the instantaneous flow of working condition, the cumulative flow of standard condition and the temperature, pressure and other parameters of the measurement medium.

With real-time data storage function, it can prevent the data loss when the instrument suddenly power off. In the state of power failure, the internal data can be saved permanently.

Reliable electromagnetic compatibility design, good anti-interference performance, high reliability, meet the electromagnetic compatibility test requirements of JJG1037-2008 standard.

Product parameters

Instrument caliber

DN15-DN300

Connection mode

flange connection type, thread connection type, clamp connction type

Accuracy level

+1.5%(soil 1% needs special)

Range ratio

1:10；1:30

Power supply

body: 304 stainless steel or cast aluminum

Impeller: high quality aluminum alloy

Converter: cast aluminum

Conditions of use

Ambient temperature :-30~+60℃;

Relative humidity :5%~90%

Medium temperature :-20~+80C;

Atmospheric pressure :86kPa~106kPa

Protection level

IP65

Working powersupply

External power supply :+24VDC, suitable for 4-20mA output,pulse output, RS485 and other

internal power supply: 3.6V 10AH lithium battery

Signal output

pulse signal, 4-20mA current signal, control signa

Communication output

RS485 communication

Real-time record

daily record, fixed time interval record

Signal interface

internal thread M20*1.5 (NPT thread needs to be customized)

Explosion-proof grade

Exia IICT6 Ga

product application

Gas turbine flowmeter is mainly used for measuring the flow of air, ammonia, oxygen, hydrogen, methane, natural gas, steam and other medium fluids in industrial pipelines. It is almost not affected by the fluid density, pressure, temperature, viscosity and other parameters when measuring the volume flow under the working condition.
