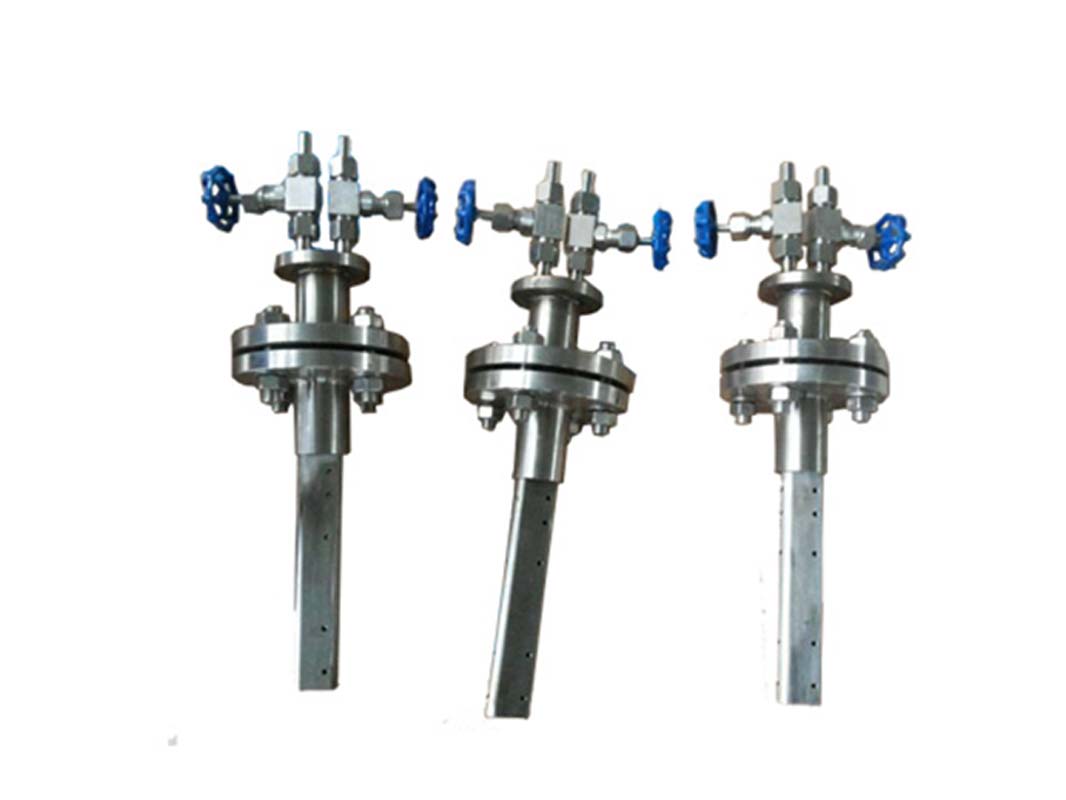

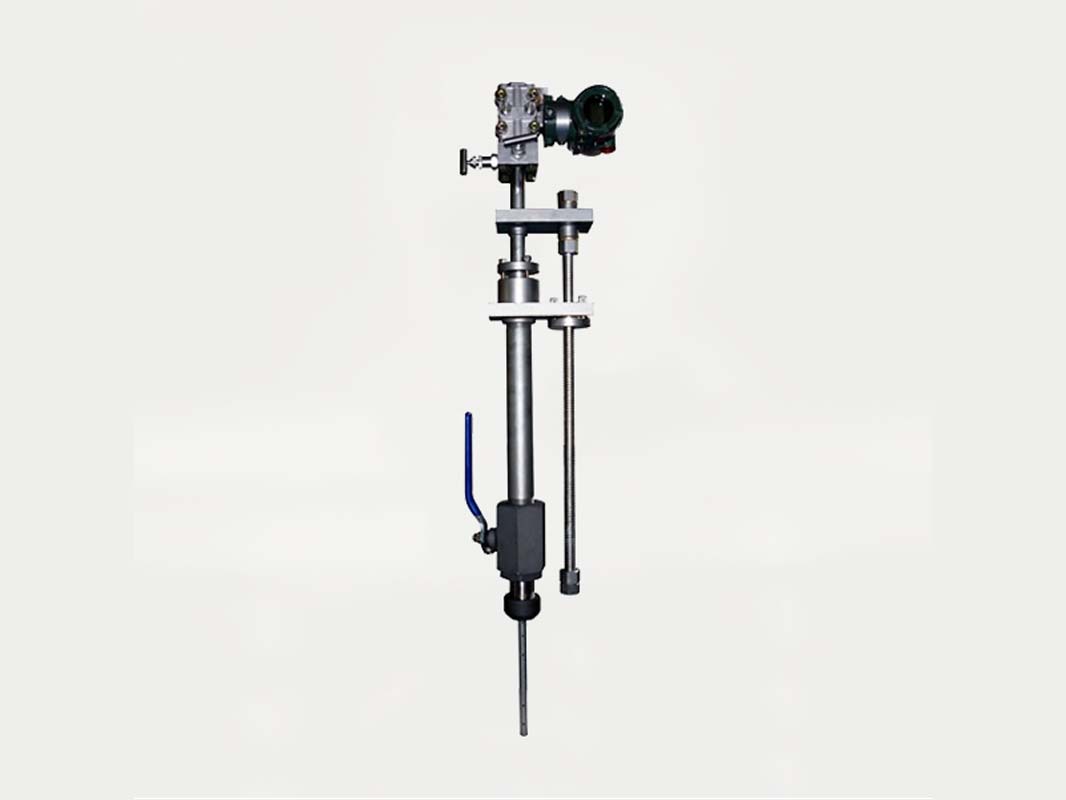

Powerbar flowmeter is a new type of plug-in flow weight measuring instrument designed and produced by the working principle of differential pressure type. It is composed of integrated powerbar sensor, differential pressure transmitter and integrator, etc. Flow weight measuring system can also be networked with the control system or computer for fluid flow remeasurement and control.
■ The velibar sensor reflects the latest research results of the speed equalizer flow sensor. The sensor is shaped like a warhead and complies with the principle of fluid dynamics. It can produce accurate and stable differential pressure signals with high strength, no leakage and no blockage. It has the advantages of high precision, reliability and stability. It can measure a variety of fluids such as gas, liquid, steam and corrosive medium. It is suitable for pipes of various sizes and used in high temperature and high pressure situations.
Applicable pipe diameter | 8mm~ 15000mm |
Measurement accuracy | +0.5%~+1.0% |
Repetition accuracy | 0.1% |
Applicable pressure | 0~25MPa, up to 40MPa in special application |
Applicable temperature | -100°C~500℃, up to 800℃ for special applications |
Applicable medium | air, gas, flue gas, natural gas, tap water, boiler feed water, containing |
rotting solute liquid | Saturated steam, over steam with condenser, etc |
Power and the use scope is extremely broad, it is used for various kinds of gas, liquid and steam measurement, the application of the following is a typical medium: gas/liquid/gas/water/steam saturated vapor compression air/water/boiler superheated steam gas/in addition to salt water gas carbon after carbon compounds/liquid after compound hot air/low temperature liquid generator gas/heat!
